Tems Discovery 27 New Features

Data Format Updates (Overview)
TEMS Updates
Additional DSDS metrics and events.
Additional Grid Testing events.

Qualcomm Updates
NR Qualcomm message decoding expanded to include current message versions:
NR 5G MAC PDSCH Status (0xB887), supported up to version 262145
NR 5G MAC UL TB Stats (0xB881), supported up to version 262144
NR 5G MAC RACH Trigger (0xB889), supported up to version 262146
NR 5G MAC RACH Attempt (0xB88A), supported up to version 262145
NR 5G MAC UL DCI Info (0xB885), supported up to version 262147
NR 5G MAC UL Physical Channel Schedule Report (0xB883), supported up to version
262146
NR 5G MAC UL Physical Channel Power Control (0xB884), supported up to version
262144
NR 5G MAC CSF Report (0xB8A7), supported up to version 262145
NR 5G MAC CDRX Events Info (0xB890), supported up to version 262145
NR 5G MAC Control Element for DL (0xB886), supported up to version 262144
NR 5G RLC DL Status PDU (0xB84E), supported up to version 196608
NR 5G RLC UL Status PDU (0xB869), supported up to version 393216
NR 5G PDCP DL Data PDU (0xB840), supported up to version 262144
NR 5G PDCP UL Control PDU (0xB861), supported up to version 393216

Analysis Enhancements

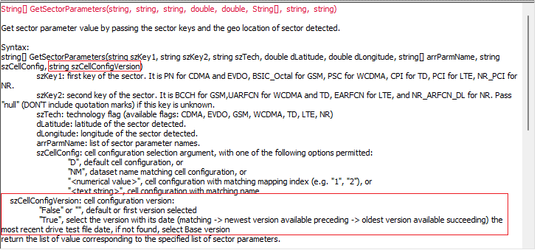

Cell Configuration Version Selection in GetSectorParameters Built-in Script Function
Automatic selection of appropriate cell configuration date version in GetSectorParameters built-in script function.
New szCellConfigVersion parameter was added to enable automatic cell configuration date version selection.
Function argument szCellConfigVersion will only be relevant if szCellConfig argument is populated with one of the permitted cell configuration selection argument values.

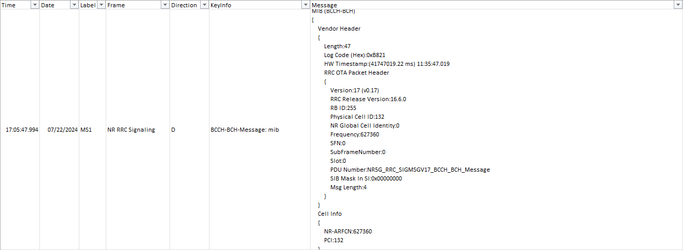

‘Messages View’ All Detail Export in Excel Format
Message decoded export now available in Excel format to facilitate signaling data search and filtering.
New “Export All Detail to Excel” option was added to Messages View alongside the existing textual format export option.
Decoded message content generated in Excel format will be truncated if it exceeds the Excel cell limit of 32,767 characters (export generated in textual format will include complete information).

Reporting Enhancements

Route Completion Percentage in Report Output
Provides visual and quantitative indication of DT route completion by selected measurement data.
A new data type, Route, is introduced, supporting .kml/.kmz files for both manual and ADP-based imports. Users are advised to submit files including exclusively DT route information without additional polygons or cell site information, otherwise those will be processed and stored as internal route objects which may complicate appropriate DT route object selection.
Route objects are saved on project level and automatically assigned reference index. Route indexing is automatically updated whenever new route file is imported to maintain alphanumeric order, which is a key for predictable index assignments.
A new ‘Route Completion %’ report type is added to the Report Template Builder (RTB) to calculate and visualize route completion, with adjustable GPS distance and interpolation thresholds.​
‘Route Completion %’ provides calculated route completion percentage with the map showing the original DT route in green and completed segments in red, overlaid on an optional GIS/map backdrop.​

Usability Enhancements
PCAP Message Timestamp Display Option in ‘Messages View’
Optional display of Packet Time information allowing comparison with data collection (computer) timestamp.
‘PCAP Packet Time’ option added to ‘Message header column selector’.​
If enabled, PT will be displayed for PCAP frame messages only.
If enabled, PT information will be included in Messages View textual and Excel export.

Platform Enhancements

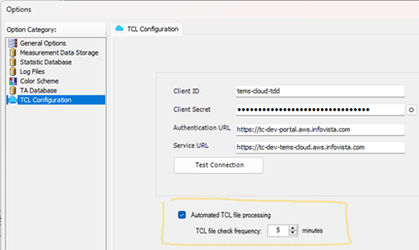

Automated Processing of TCL Tagged TEMS Log Files
Facilitates in-depth analysis of the log files flagged by a TCL user.
Requires configuring connection with the TCL in TDE by specifying TCL client credentials, authentication and service URLs from Configuration | Options | TCL Configuration.
Automated processing of TCL flagged log files is activated by enabling ‘Automated TCL file processing’ option with an appropriate file check periodicity.

Data Format Updates (Detailed)
TEMS Updates
New Information Elements:
DSDS
DSDS Active SIM
Message Sim Stack
LTE Serving/Intra-Freq Neighbor Cells
Serving Cell Co-located NR Cell
Secondary Serving Cell Co-located NR Cell, i = 1 to 7
LTE UE TX Power Summary
UE Power Class Carrier , i = 1 to 8
New Events:
DSDS
DSDS Active SIM Changed
Grid Testing
Grid Testing Force Clear
Grid Testing Force Completion
Grid Testing Force Set
NR Reporting Events
NR RRC B1 Event
NR RRC B2 Event
WiFi
WiFi Connected
WiFi Disconnected
New Service KPIs (TEMS_Service_KPIs):
DSDS
DSDS_Radio_Idle_Time
DSDS_Source_Network_Operator
DSDS_Source_RAT
DSDS_Source_SIM
DSDS_Target_Network_Operator
DSDS_Target_RAT
DSDS_Target_SIM
WiFi
WiFi_Connected_SSID
WiFi_Disconnected_SSID
Obsoleted/Removed Information Elements:
LTE Serving/Intra-Freq Neighbor Cells
Serving Cell Serving Cell EN-DC Support
Secondary Serving Cell Serving Cell EN-DC Support, i = 1 to 7

more information :

http://online.mytemscloud.com/TD/27.1/HtmlHelp/index.html
